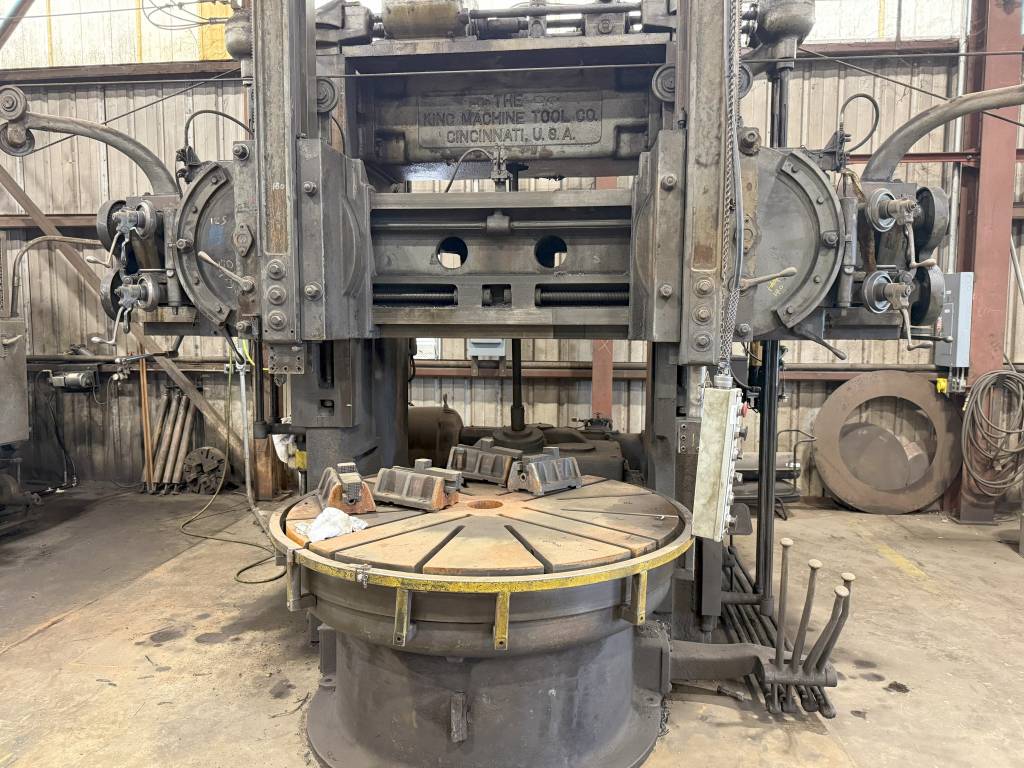

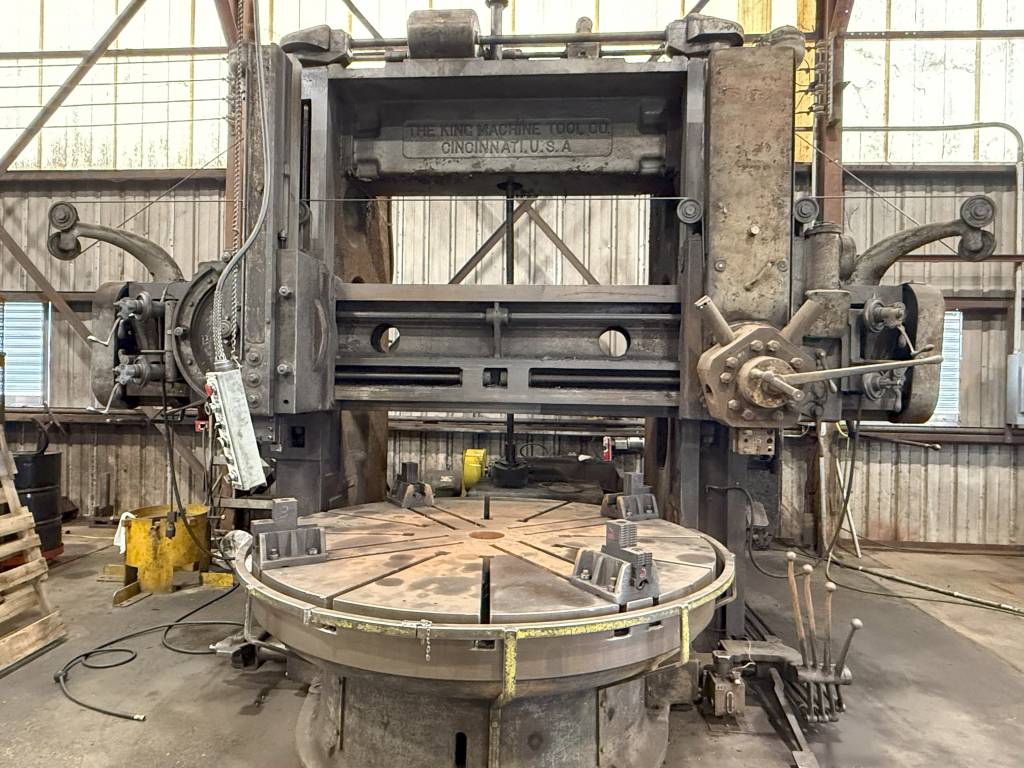

84″ King VBM
×
![Carousel Image]()
84″ King VBM
🛠️ Specs
- Table Diameter: 84″
- Max Swing: 96″
- Height Under Rail: 60″
- Ram Travel (Vertical): ~36″
- Table Speeds: 1 – 100+ RPM
- Feed Rates: 0.010 – 0.500 IPR
- Table Drive Motor: 50-75 HP
- Weight: ~75,000 lbs
- Dimensions: 160″ x 220″ x 150″
⚙️ Capabilities
- Heavy-Duty Turning, Boring, and Facing of large, heavy workpieces
- 5-Position Turret Head for rapid tool changes
- Swiveling Ram Head for precision angled cuts
- Side Head Machining for additional axes and operations
- Digital Readouts (DRO) for enhanced positioning accuracy
- Power Adjustable Cross Rail to accommodate various workpiece heights
- Pendant-Mounted Operator Controls for convenient access and machine control
- Coolant System to reduce tool wear and dissipate heat during extended cuts
- Threading, Grooving, and Contour Machining on large components
- Backlash-compensated lead screws for precise finishing
- Robust Table Drive System to maintain torque under heavy loads
🏗️ Applications
- Aerospace Components – such as jet engine casings, flanges, and housings
- Energy Sector Equipment – turbines, windmill hubs, valve bodies, nuclear parts
- Heavy Industrial Machining – castings, gear blanks, pump housings
- Precision Boring for large mechanical assemblies
- Mining & Earthmoving Machinery – base plates, bearing housings, drive drums
- Railroad & Marine Industry – wheel hubs, ship components, bearing assemblies
- Rotational Symmetry Parts – any large-diameter round workpieces
- Repair/Rebuild Shops – ideal for remanufacturing and retrofitting work
Related Video
62″ King VBM
×
![Carousel Image]()
62″ King VBM
🛠️ Specs
- Table Diameter: 62″
- Max Swing: 70″
- Height Under Rail: 51″
- Ram Swivel: ±60 degrees
- Table Speeds: 1.7 – 123 RPM
- Feed Rates: 0.010 – 0.500 IPR
- Table Drive Motor: 40–50 HP
- Machine Weight: ~55,900 lbs
- Dimensions: ~137″ x 190″ x 142″
⚙️ Capabilities
- Ram, turret & side heads
- Newall digital readouts
- 5-position turret head
- Swiveling ram for angles
- Pendant controls
- Power rail elevation
- Coolant system
🏗️ Applications
- Heavy machining
- Precision boring
- Facing operations
- Aerospace components
- Energy sector equipment
Related Video
Bullard
×
![Carousel Image]()
Bullard
🛠️ Specs
- Table Diameter: 62″
- Max Swing: 70″
- Height Under Rail: 51″
- Ram Swivel: ±60°
- Table Speeds: 1.7 – 123 RPM
- Feed Rates: 0.010 – 0.500 IPR
- Motor Power: 40–50 HP
- Machine Weight: ~55,900 lbs
- Dimensions: ~137″ x 190″ x 142″
⚙️ Capabilities
- Ram, turret & side heads
- Newall digital readouts
- 5-position turret head
- Swiveling ram for angles
- Pendant controls
- Power rail elevation
- Coolant system
🏗️ Applications
- Heavy machining
- Precision boring
- Facing operations
- Aerospace components
- Energy sector equipment
